Restoration Tips

On this page you can see differences between a model 3000 and a model 5000

Here is a step by step teardown inspection and assembly of a bantam differencial and transmission.




Model 3000



Briggs 3 HP model 9FB



Cast aluminum grill stamped inside "Standard Machinery Co."



Cast iron seat



Small cast iron steering wheel



Cast iron rear clamshell fenders



Cast iron steering gear is larger



Body to hood mounting width longer



Body to hood mounting is shorter



Front steering shaft is shorter



Foot pegs ends have offset washer



Rear wheel rims are 3 pieces



Throttle lever mounted on dash



Clutch has 3/4" bore



Clutch has welded in ball bearing belt idler















Model 5000



Briggs 5 HP model 14FB



Cast iron grill is not stamped inside



Stamped steel seat



Larger cast aluminum steering wheel



Full steel rear fenders



Cast iron steering gear is smaller



Body to hood mounting width narrower



Body to hood mounting is taller



Front steering shaft is taller



Foot pegs ends have centered washer



Rear wheel rims are 1 piece



Throttle lever mounted on side of hood



Clutch has 1" bore



Clutch has bronze bearing belt idler with snap ring





When I started Building the different models I found these differences between Model 3000 and 5000

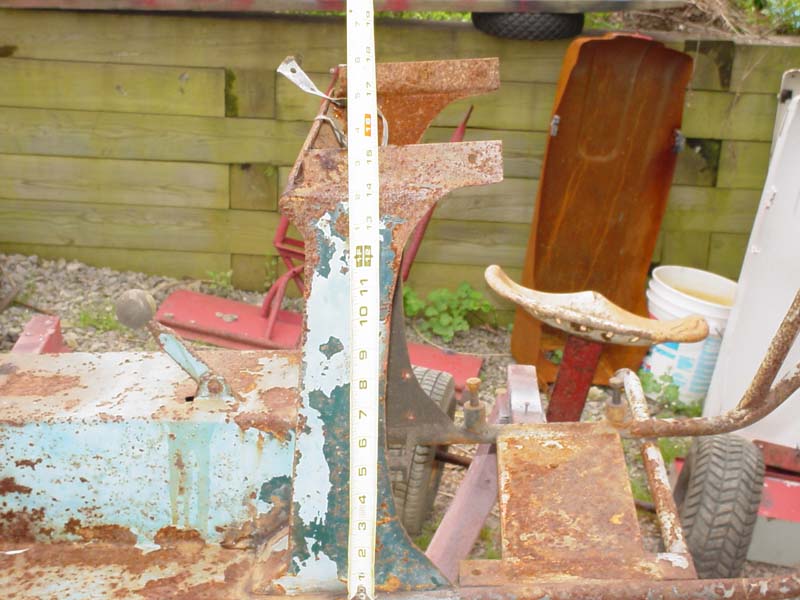

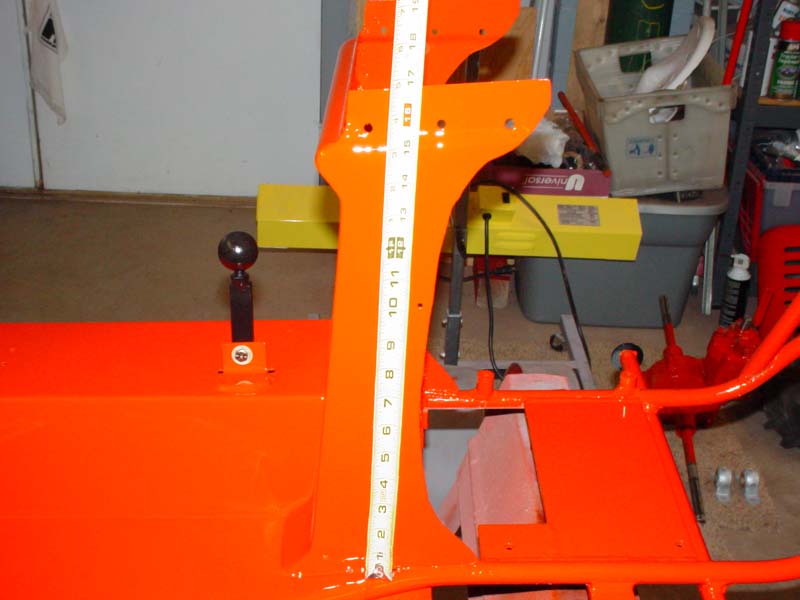

Firewall is shorter on the 3000


The firewall is approximately 2" shorter

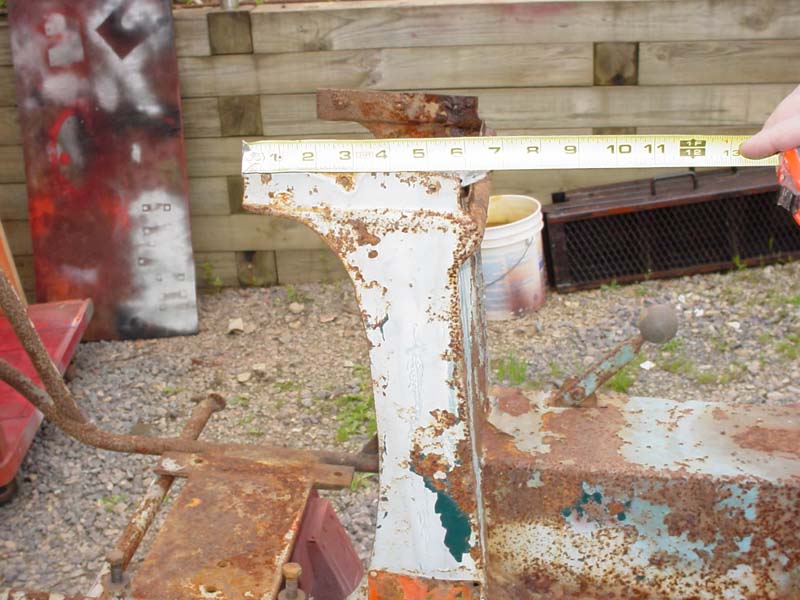

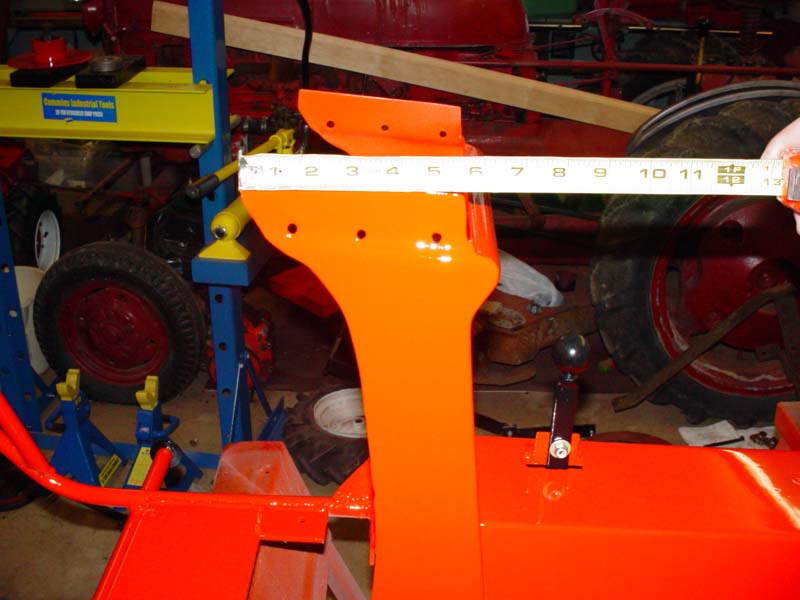

The width of the hood mount is longer on the 3000

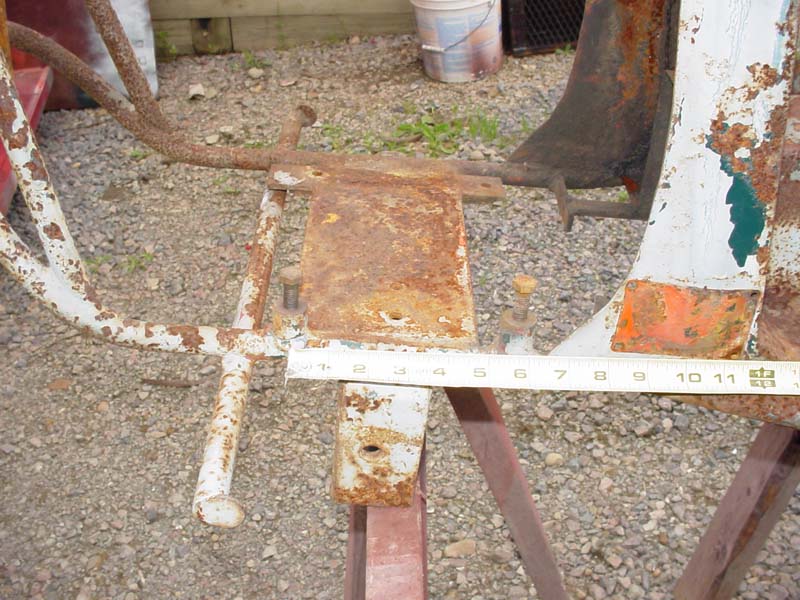

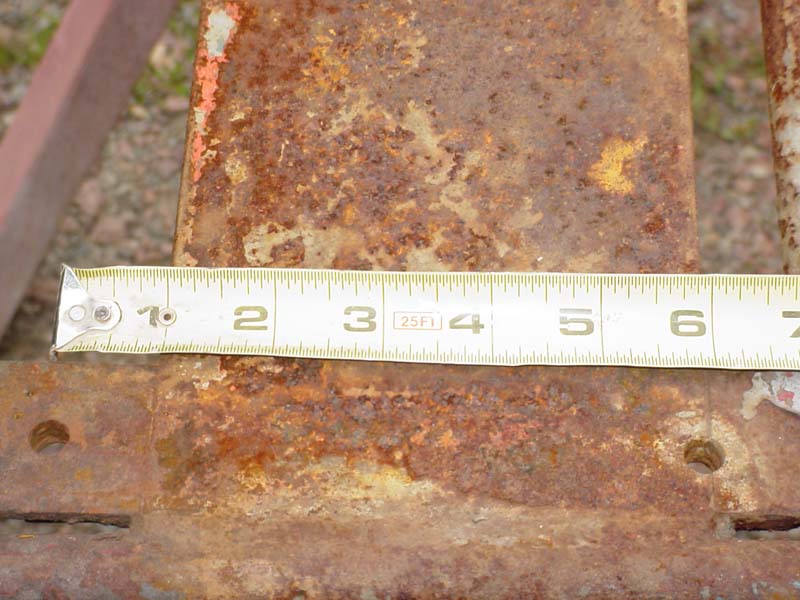

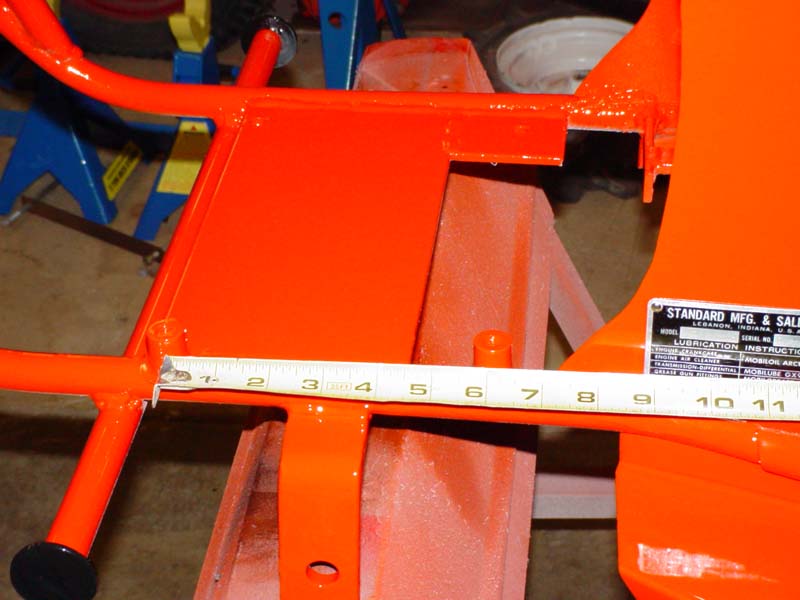

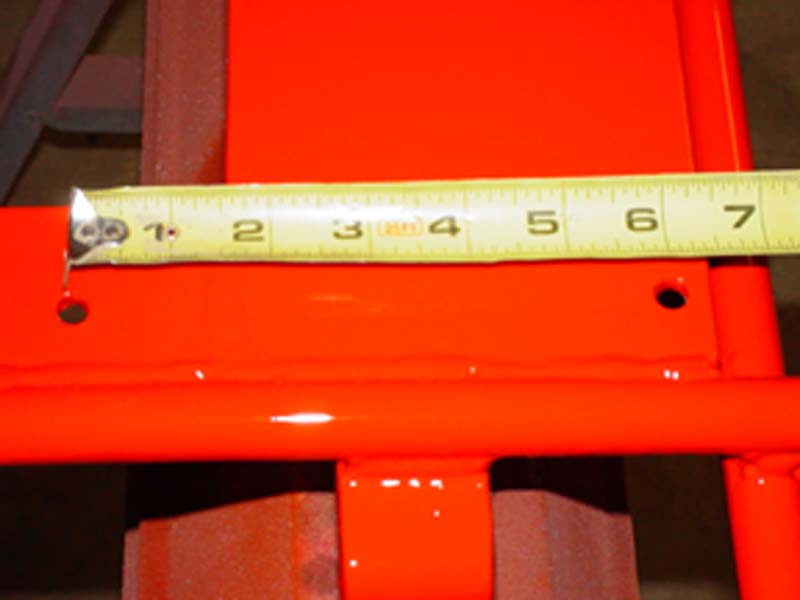

Motor mounts

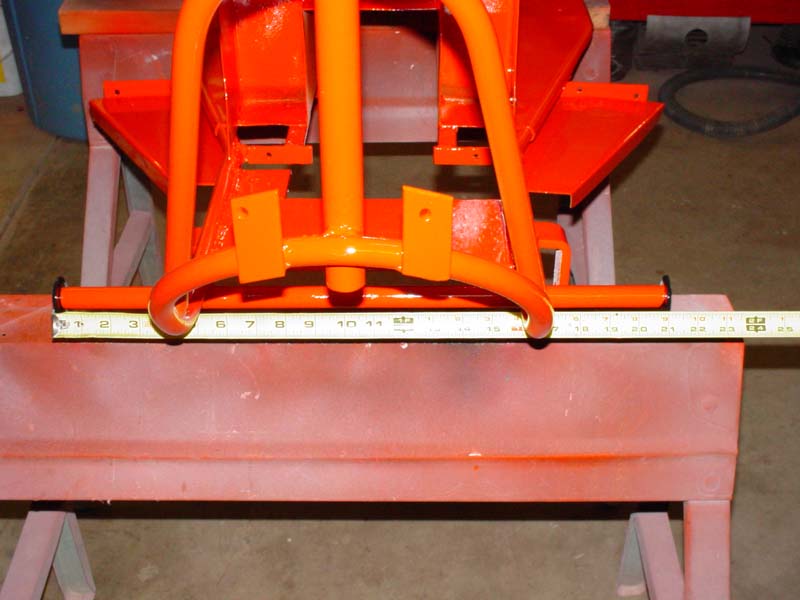

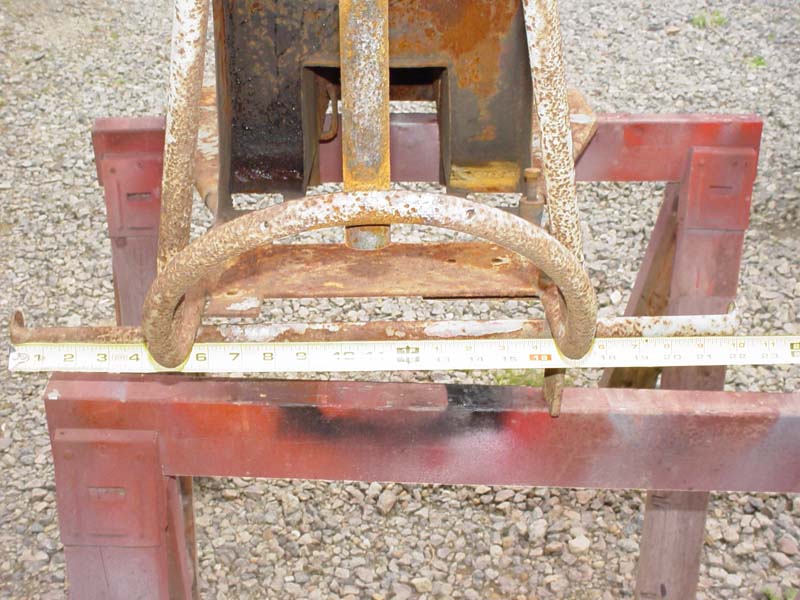

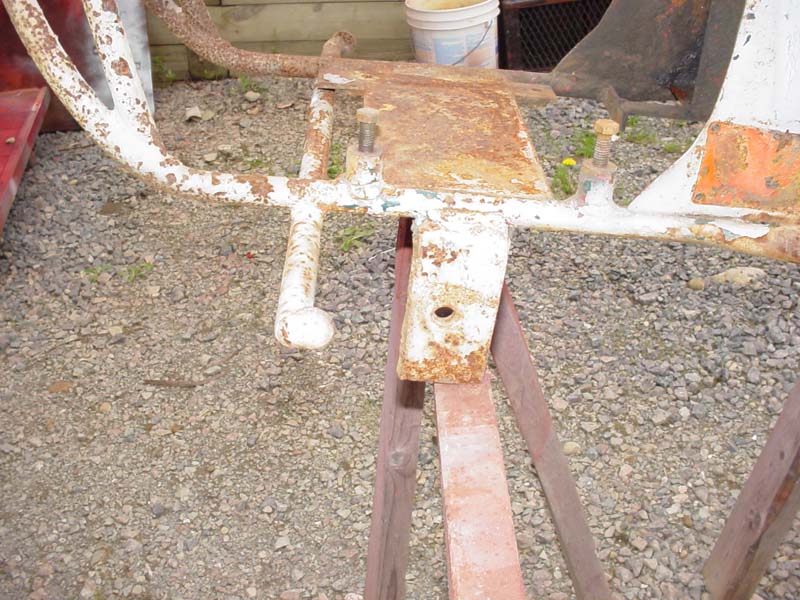

Lenght of the feet pegs are shorter on the 3000


Pegs are approximately 3" longer on the 5000

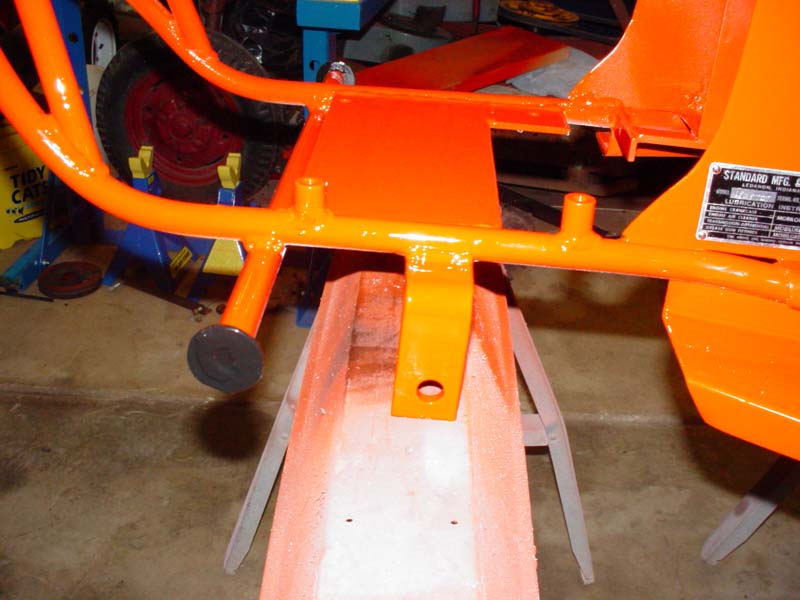

Peg ends are off set on the 3000


Peg ends are centered on the 5000

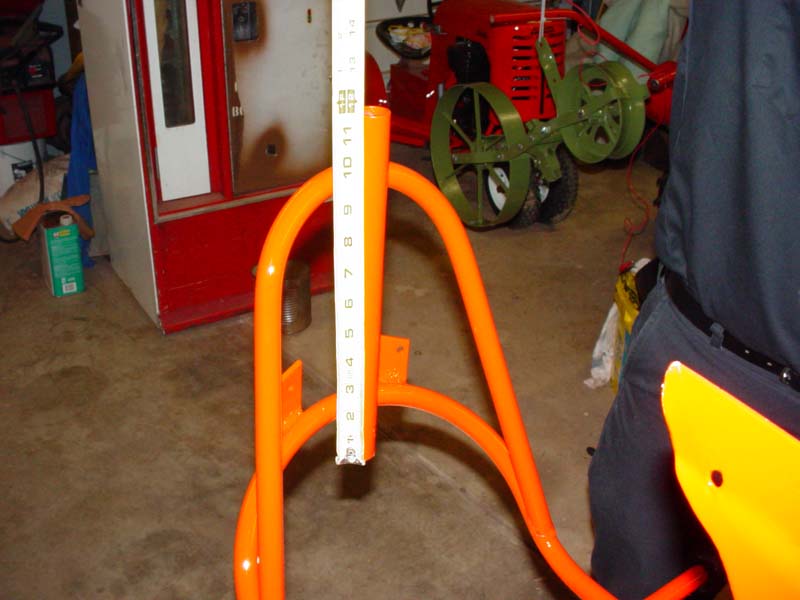

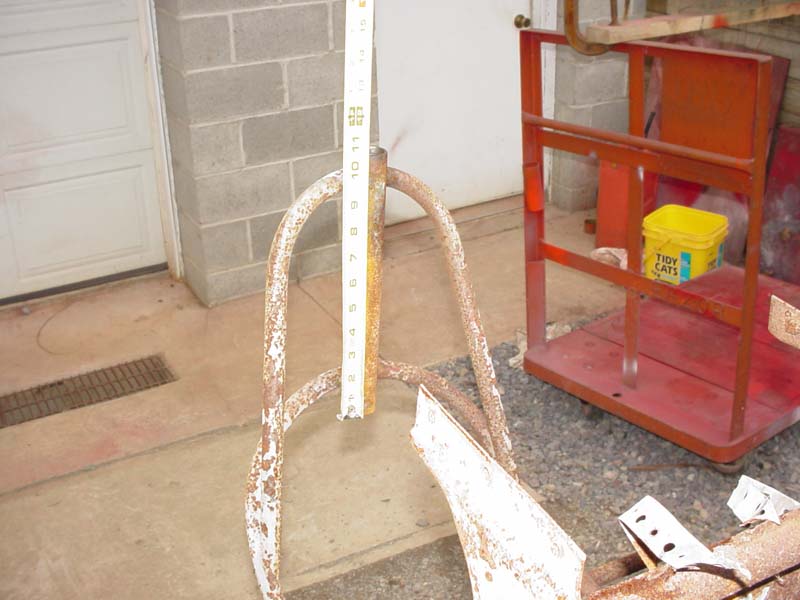

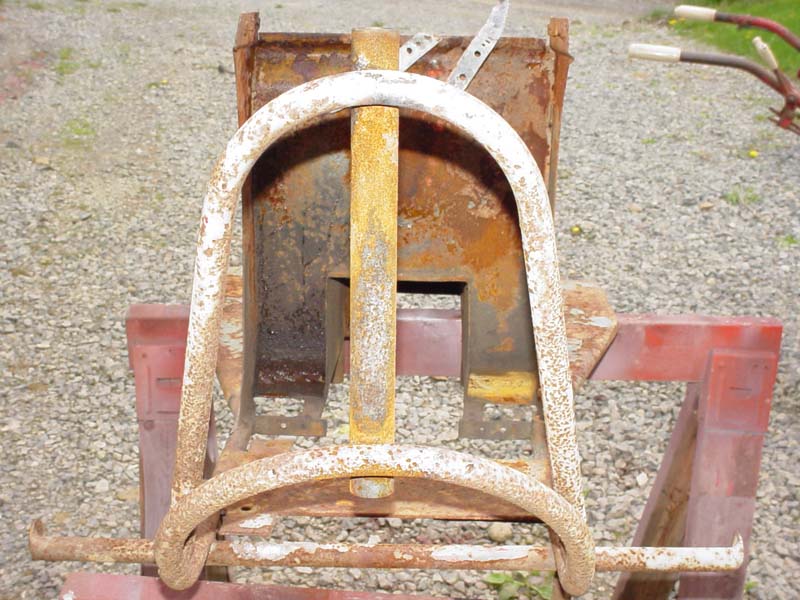

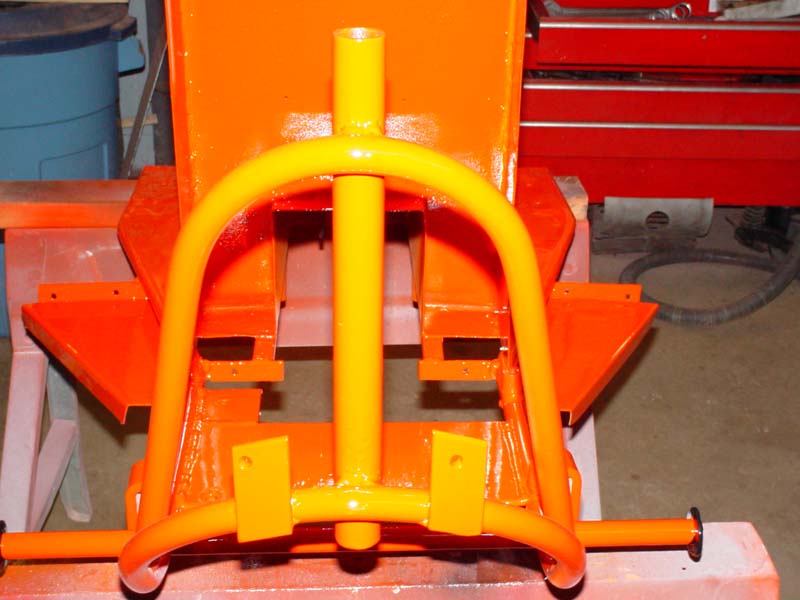

The steering tube is shorter on the 3000
